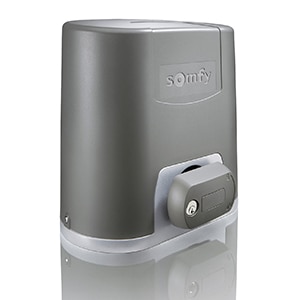

ELIXO 500 230V ECO CFT PACK RTS

UP TO 8 M | 500 KG

Reliable and hard-wearing
for sliding gates
Easy to install
> Easy access to ground fixation screws
from the top.
> No adjustment needed from the
installer.

Technical characteristics ELIXO 500 KIT STANDARD 230 V
Power supply 220 V / 230 V - 50/60 Hz
Motor power supply 230 V AC
Power consumption 290 W
Capacitor 10 μF (230 V) - 40 μF (110 V)
Motor revolutions 1400 rpm
Maximum consumed current 1.5 A (230 V) - 3A (110 V)
Revolutions at output 48 rpm
Number of storable channels 128
Operating time 0 - 120 s
Gate speed 8.5 m/min
Maximum torque 20 Nm
Number of cycles/day 100
